Introduction to Concrete Silane Impregnation Materials

1. Material Introduction

1.1Principle of Silane Impregnation Protection for Concrete:

A silane impregnant is a small-molecule compound possessing a specific structure, as illustrated in Figure 1. The general formula is RSi(OR’)₃, where R’ represents an alkyl group (such as methyl, ethyl, isopropyl, butyl, pentyl, or dodecyl), and R represents an alkyl group (such as methyl, isobutyl, pentyl, octyl, or dodecyl). Silane impregnants serve to reduce the surface tension of concrete and enhance its hydrophobic properties. Upon hydrolysis, the alkoxy groups within the silane form silanols; these silanols can bond with hydroxyl-containing compounds present in the concrete substrate via hydrogen bonds. Furthermore, within the alkaline environment of the concrete, these silanols can undergo condensation to form silicates, thereby establishing connections through stronger chemical bonds. The small-molecule structure of silane materials endows them with excellent penetrability; the penetration depth into the concrete substrate surface can range from 3 to 20 mm. This penetration depth is influenced by various factors, including the application rate, substrate strength, the concrete’s water-binder ratio, the concrete’s moisture content, and the specific type of silane used. Figure 2 illustrates the bonding mechanism between silane and concrete. Research indicates that silane impregnation materials currently represent the most ideal solution for protecting concrete against salt ingress and freeze-thaw damage.

1.2 Performance Indicators and Applicable Standards for Silane Impregnation Materials

The applicable standards for liquid silane impregnants are JTS/T209-2020, *Technical Specification for Anti-Corrosion Construction of Water Transport Engineering Structures*, and JTS153-2015, *Standard for Durability Design of Water Transport Engineering Structures*. The standard JTJ275-2000, *Technical Specification for Anti-Corrosion of Concrete Structures in Seaport Engineering*, has been superseded.

1.3 Differences Among Various Silane Impregnation Materials:

Currently, silane impregnation products available on the market can be classified—based on their chemical composition—into isobutyltriethoxysilane, octyltriethoxysilane, and isooctyltriethoxysilane. The primary distinction among these three lies in the differing chemical structures of their hydrophobic groups. However, because the production processes for isobutyltriethoxysilane and isooctyltriethoxysilane necessitate the use of gaseous raw materials as well as high-temperature and high-pressure reaction conditions, these two products tend to be more expensive. In terms of their protective efficacy for concrete structures, the differences are not significant; the choice of material composition is primarily determined by the requirements specified in the design documents. Silane paste materials represent an alternative physical form of these products, prepared through the physical processing of octyltriethoxysilane or isooctyltriethoxysilane. Compared to liquid-based materials, paste materials impose stricter requirements regarding the composition of the hydrophobic groups, thereby effectively preventing issues related to the substitution of inferior ingredients for high-quality ones.

1.4 Common Issues with Silane Impregnation Materials and Preventive Measures.

 Silane paste is an alternative physical form of silane impregnation material, typically prepared from octyltriethoxysilane or isooctyltriethoxysilane through physical processing. Compared to liquid formulations, paste materials impose stricter requirements on the composition of hydrophobic groups, thereby preventing the issue of “substandard products being passed off as high-quality.” (1) One should not rely solely on the “lotus-leaf effect” (hydrophobicity) of the surface to judge the efficacy of a silane treatment. Materials such as water glass can also impart a temporary lotus-leaf effect to concrete structures; however, they fail to provide concrete with genuine waterproofing, salt-resistance, or freeze-thaw protection capabilities. Moreover, the cost of such materials is merely one-fifth that of actual silane impregnation agents. (2) Colored silanes—whether in the form of liquid impregnants or pastes—constitute small-molecule systems. For silane impregnation materials to be effective, they must fully penetrate into the interior of the concrete structure; while color pigments can be dispersed within the silane, they cannot adhere to the concrete surface. Colored silanes generally fall into two categories: (1) Pigments are dispersed directly into the silane base. Once the silane has fully penetrated the concrete structure, the pigments remain adsorbed on the surface; however, under external environmental influences (such as wind and rain), these pigments quickly dissipate, causing the concrete to revert to its original appearance. (2) Pigments are dispersed into a polymer emulsion (typically a water-based fluorocarbon emulsion) to create a water-based polymer coating. This coating is then combined with the silane impregnation agent in an appropriate manner and applied jointly to the concrete surface. This approach allows the silane impregnation to fulfill its protective function while simultaneously ensuring that the color pigments adhere firmly to the concrete surface, remaining free from discoloration or peeling for a period exceeding five years.

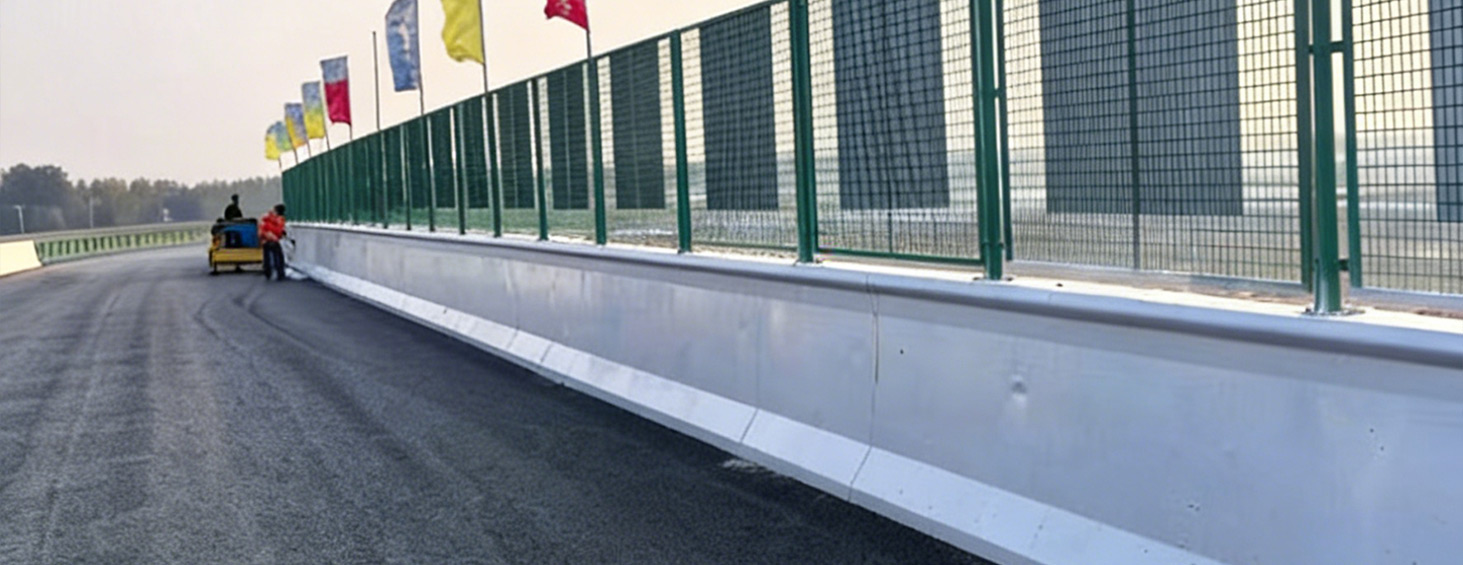

2. Construction Precautions:

• The silane impregnation protective material for concrete is a single-component product.
• It must be kept sealed in its original container and used within its valid shelf life.
• The liquid silane impregnant can be applied via brushing or spraying; however, the use of semi-mechanized spraying equipment is recommended for application.
• Pre-treatment of the concrete surface is required prior to construction: (1) Remove surface debris and loose attachments; use repair mortar to patch obvious defects such as pits and exposed aggregate; for carbonated concrete, the carbonated layer must be chipped away and subsequently repaired with repair mortar. (2) Remove dust, oil stains, and other harmful substances or contaminants that would hinder the silane impregnation process.
• Apply the silane to a concrete surface that is “surface-dry” (free of visible moisture). When working in areas subject to fluctuating water levels, application should only proceed when no standing water is visible on the concrete surface, ensuring a dry period of 3 to 6 hours to allow for the absorption of the silane into the concrete; silane must not be applied during rainfall.
• The silane protective material may only be applied to the concrete surface after the full curing period has elapsed.

• The temperature of the concrete surface must be between 5°C and 45°C. (1) The construction site must be free of open flames, and all personnel involved in the operation must utilize necessary safety and protective equipment. (2) The silane impregnation process should be carried out via continuous spraying. Typically, two coats are required to achieve the specified application coverage rate mandated by the design specifications; under standard conditions, the required application rate for the liquid material is 300–350 g/m². In cases involving specific design requirements, application shall be executed in strict accordance with those requirements.
