Based on nano-molecular silane materials, this technology provides three-dimensional protection for concrete structures through full impregnation. Silane molecules penetrate into the internal pores of concrete and form a permanent protective layer via chemical bonding. It can effectively prevent the erosion of concrete by water and water-borne harmful substances, and significantly enhance the freeze-thaw resistance and chloride ion resistance of concrete.
Excellent permeability: It can deeply penetrate into the interior of concrete materials to protect the internal structure of the substrate from water damage;
Ideal chloride ion penetration resistance: Effectively reduces chloride ion penetration by more than 90%;
Reacts with inorganic silicate substrates to form a stable reticulated silicone resin structure, thus achieving a service life consistent with that of the protected concrete;
Superior water resistance and alkali resistance: Water absorption ratio < 7.5%; water absorption ratio remains 100% after immersion in 0.1mol/L NaOH solution;
Does not alter the appearance of concrete structures, making it especially suitable for the surface protection of fair-faced concrete;
|
Item |
Index |
|
Main Component |

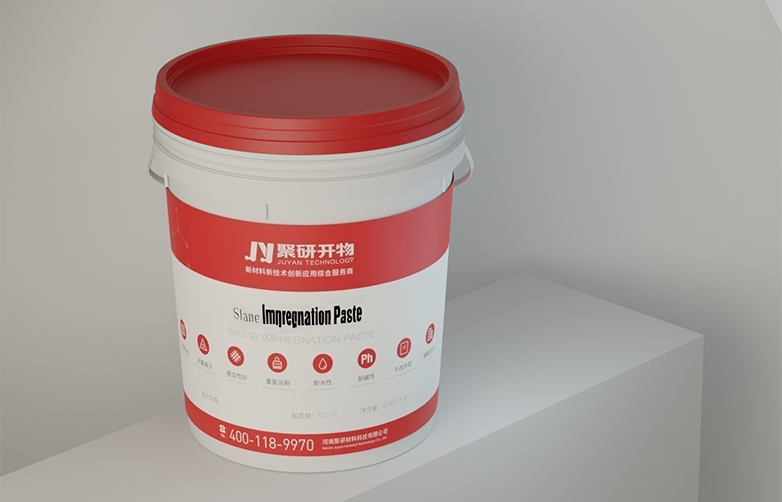

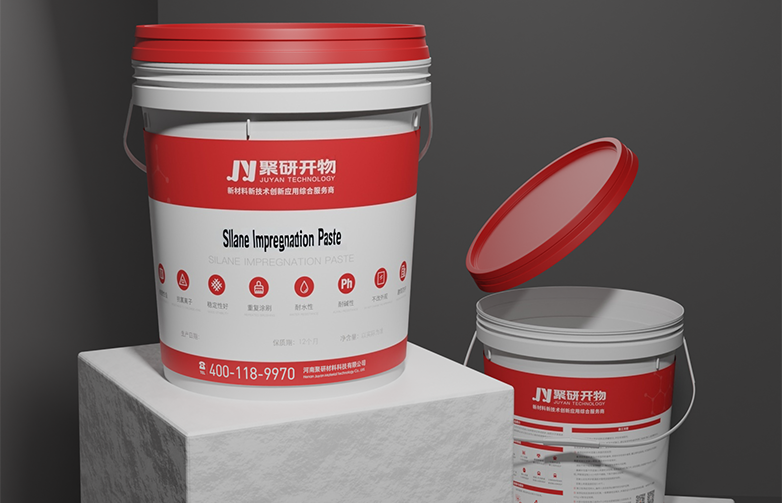

Silane Impregnating Paste |
|
Active Ingredient Content, % |
Customized according to design documents |
|
Odor |
No obvious pungent odor or slight ethanol odor |
|
Density (25°C), g/cm³ |
0.90±0.2 |
|
pH Value |
7±1 |
|
Chloride Ion Content, g/m³ |
< 100 |
|
Drying Coefficient, % |
> 30 |
|
Water Absorption Ratio, % |
< 7.5 |
|
Alkali Resistance, % |
Water absorption ratio after alkali treatment ≤ 10 |
|
Chloride Ion Absorption Reduction Rate, % |
> 90 |
|
Penetration Depth, mm |
≤ C45 concrete: 3–5> C45 concrete: 2–3 |
|
Salt Freezing Resistance (W/C=0.7 concrete) |
Withstands at least 25 more freeze-thaw cycles than the reference concrete in salt solution |

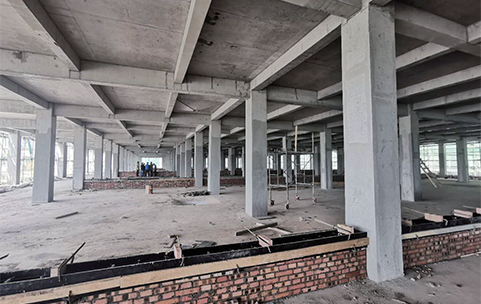

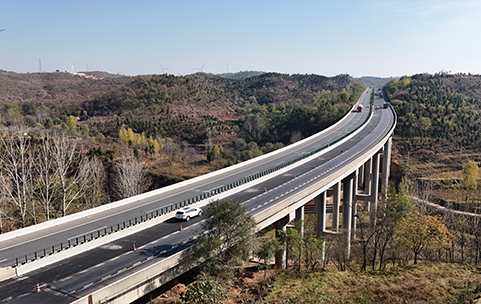

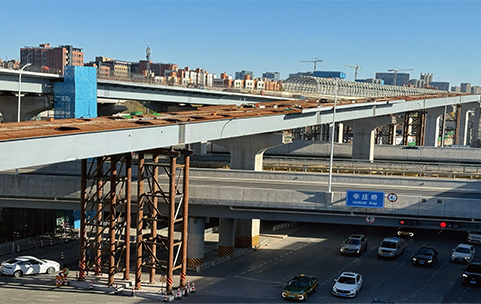

Highways & railways, bridges & docks, tunnels, airport runways, sewage treatment plants, thermal power plants, nuclear power plants, concrete structure protection, cross-sea bridges, marine engineering, municipal & marine concrete structure protection, and other buildings.
